1.產品編號：7002
2.產品名稱：虹吸閥
3.產品介紹：采用304不銹鋼制成的虹吸閥，具備耐用和耐腐蝕的特性。用于消毒劑，泡沫，清水的切換分配輸送。可連接高壓增壓裝置或中低壓空氣壓縮裝置。7002型號為藍色計量閥款，可調節吸料濃度。
4.行業應用：虹吸閥廣泛用于屠宰、食品加工、領料生產、制藥工業、牛奶生產以及釀酒等行業的衛生清洗和消毒任務。它滿足各種衛生標準，確保產品質量和安全性，是這些行業中不可或缺的清潔工具。
5.技術參數：
進水口 | G 3/8”內螺紋 |
出水口 | ZG 1/2”內螺紋 |
吸料口 | 比例塞 需配內徑8mm軟管 |
壓縮空氣進口 | G 3/8”外螺紋 |
最大壓力/流量 | 300bar / 60l/min |
最小壓力/流量 | 5bar / 4l/min |
工作溫度 | 最高90℃ |
材 料 | 304不銹鋼 |

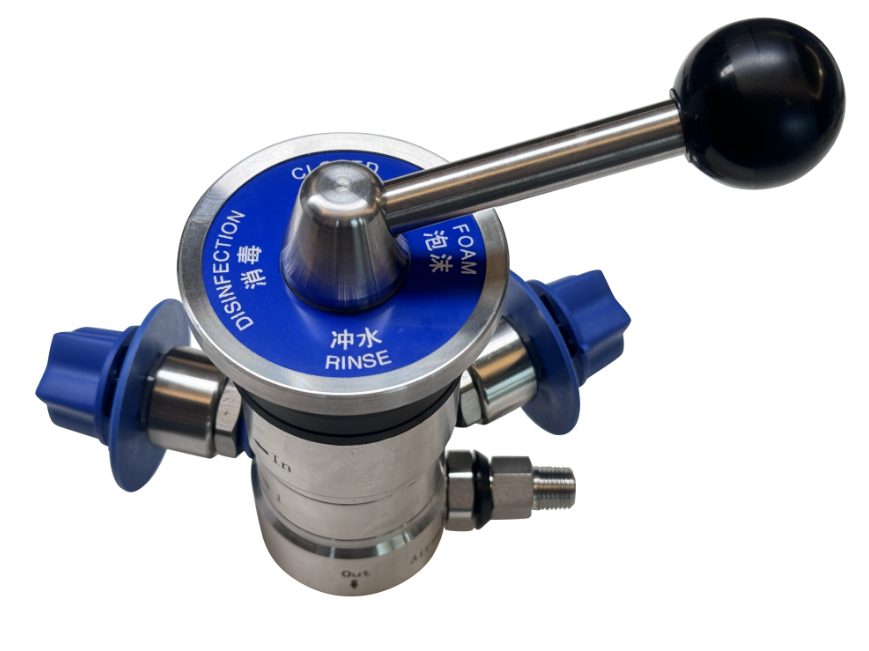

1. Code: 7002
2. Name: Injector
3. Description: Injectors made of 304 stainless steel are durable and corrosion resistant. Used for switching distribution of disinfectant, foam and water. It can be connected to high pressure device or low-mid pressure compressed air device. Model 7002 is a blue metering valve with adjustable suction concentration.
4. Application: Injectors are widely used in slaughtering, food processing, material production, pharmaceutical industry, milk production, wine and other industries of hygiene and disinfection tasks. It meets various hygiene standards, ensures product quality and safety, and is an indispensable cleaning tool in these industries.
5. Technical Specification:
WATER INLET | G 3/8 "internal thread |
WATER OUTLET | ZG 1/2 "internal thread |
SOLUTIONS SUCTION HOLE | I.D. 8MM hose to be connected |
COMPRESSED AIR INLET | G 3/8 "external thread |
MAX PRESSURE/FLOW | 300bar / 60l/min |
MIN PRESSURE/FLOW | 5bar / 4l/min |
WORKING TEMPERATURE | ≤90°C |
MATERIAL | 304 STAINLESS STEEL |
